Description

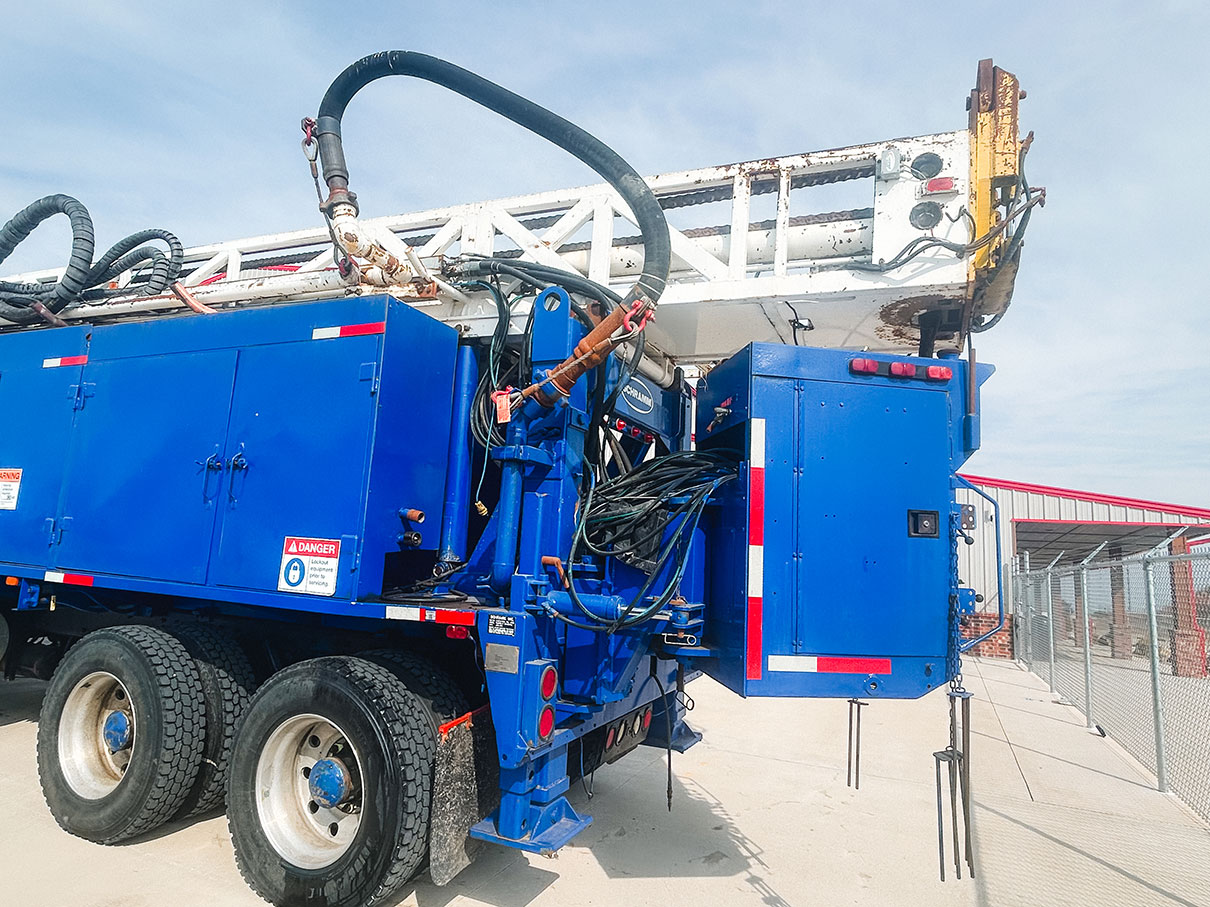

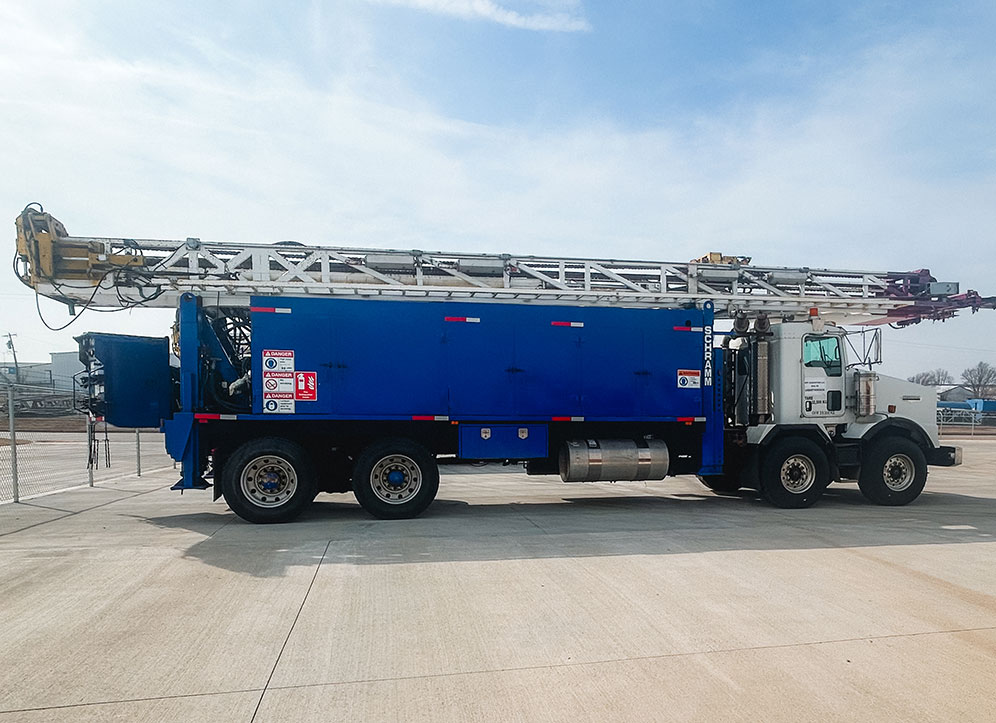

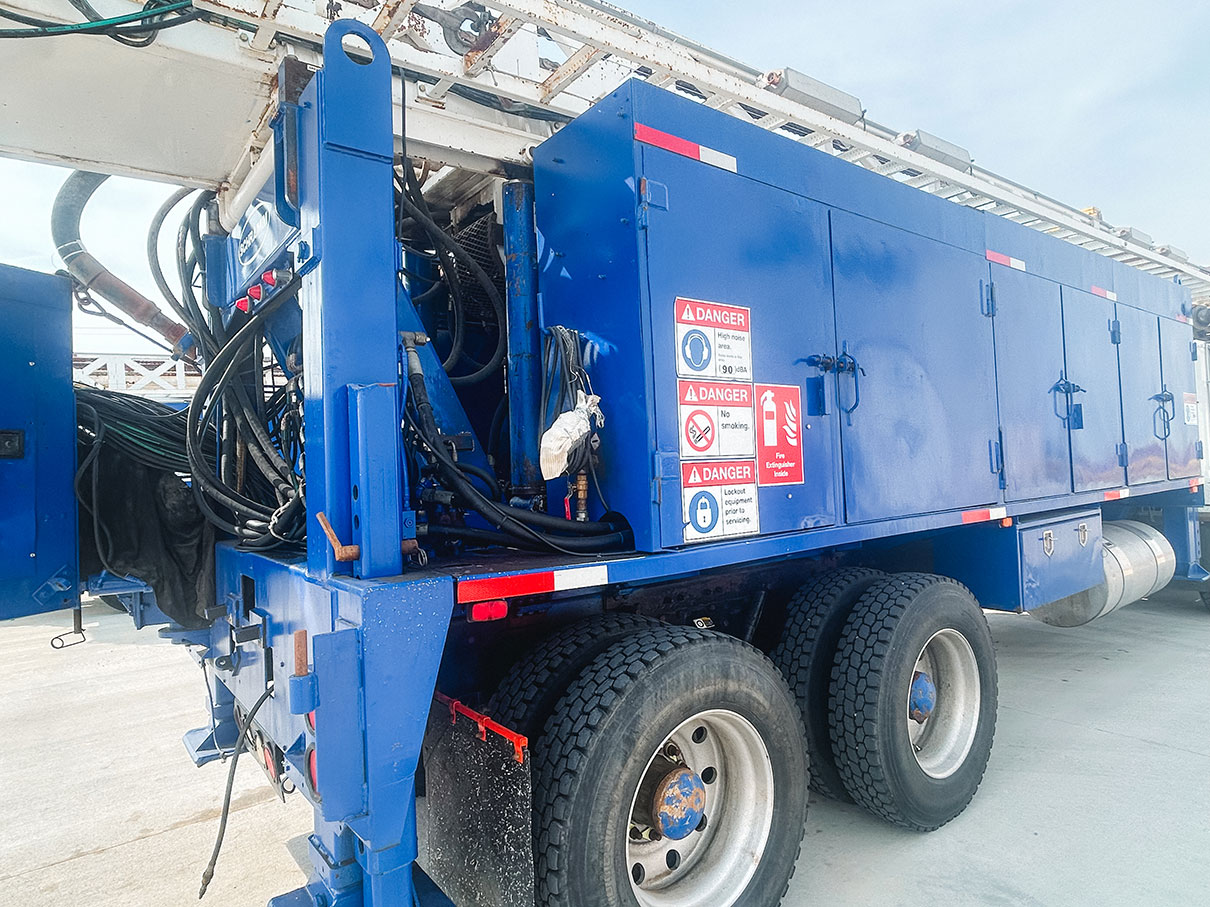

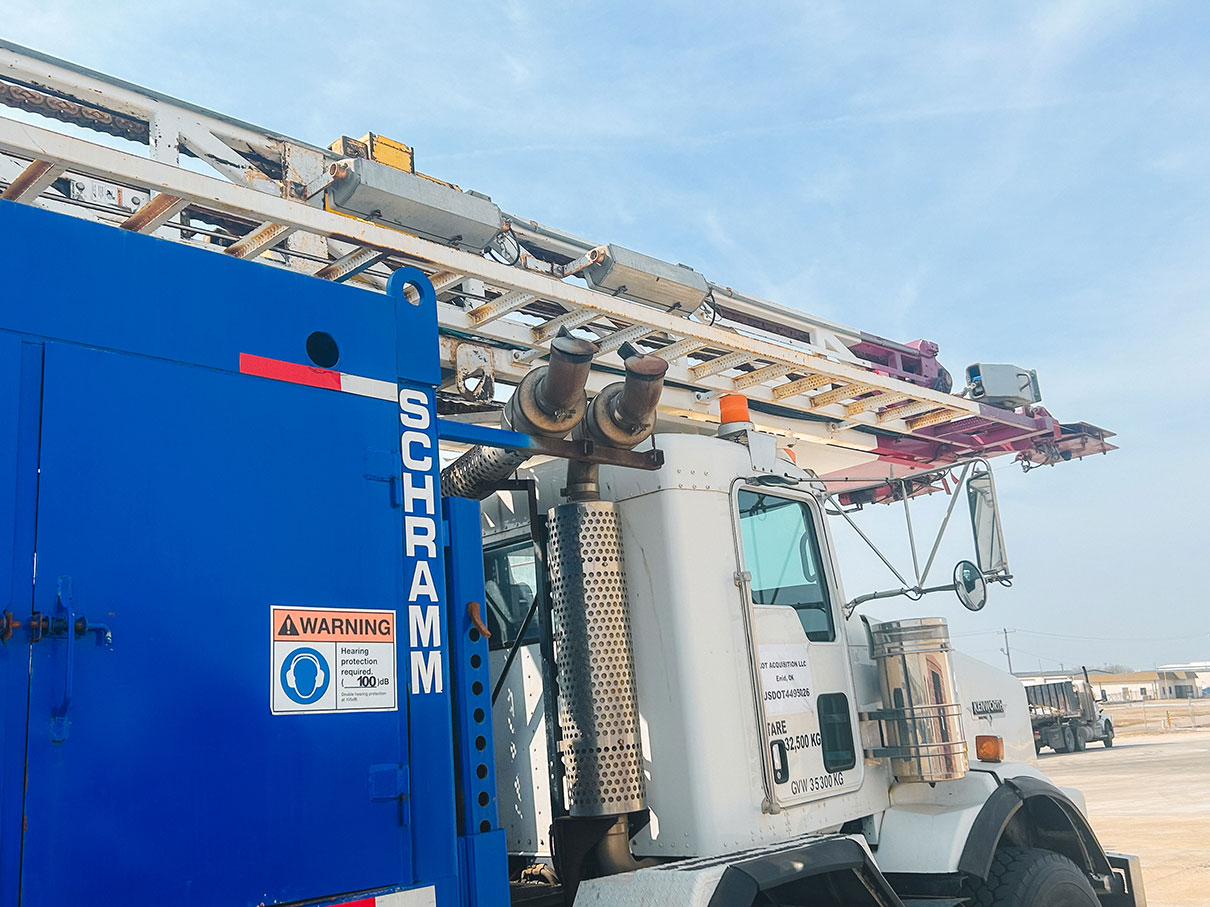

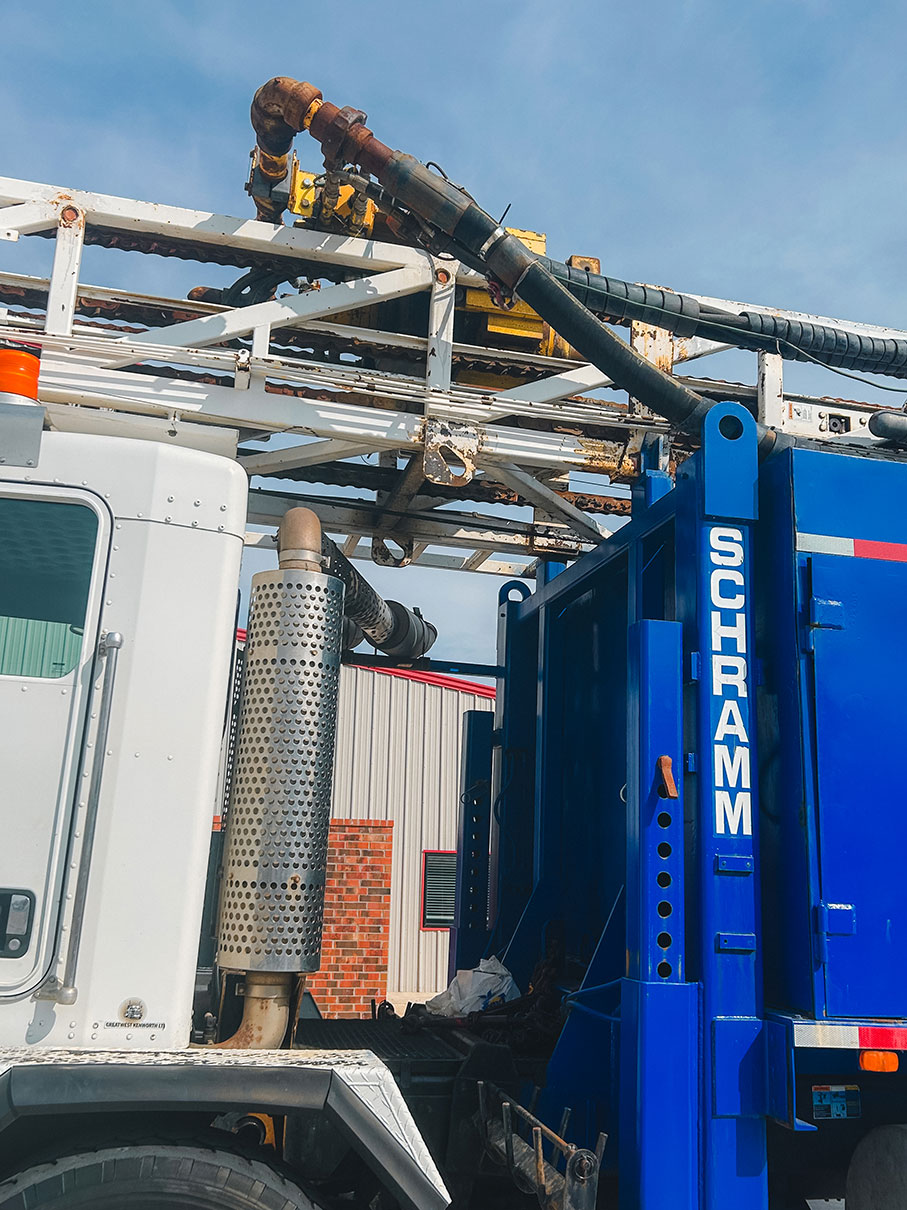

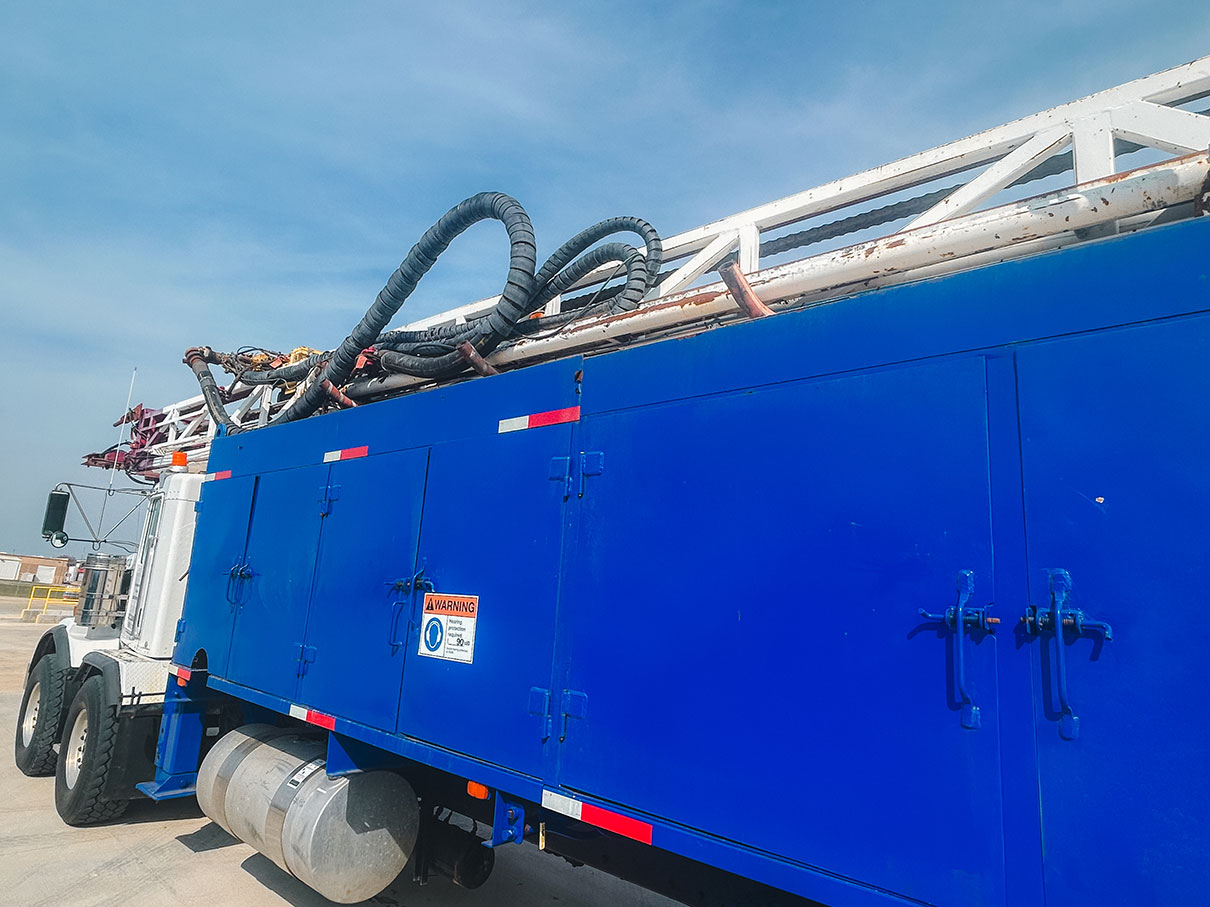

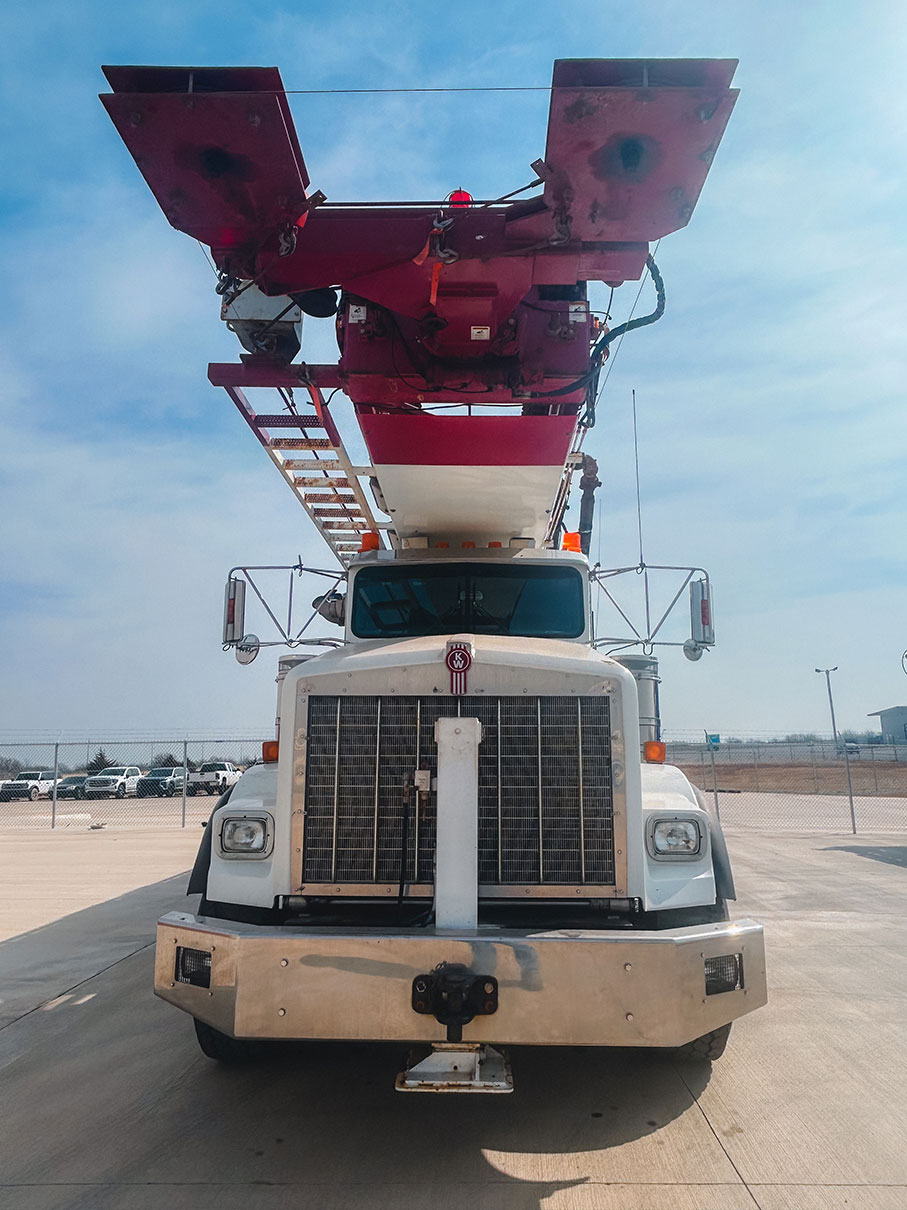

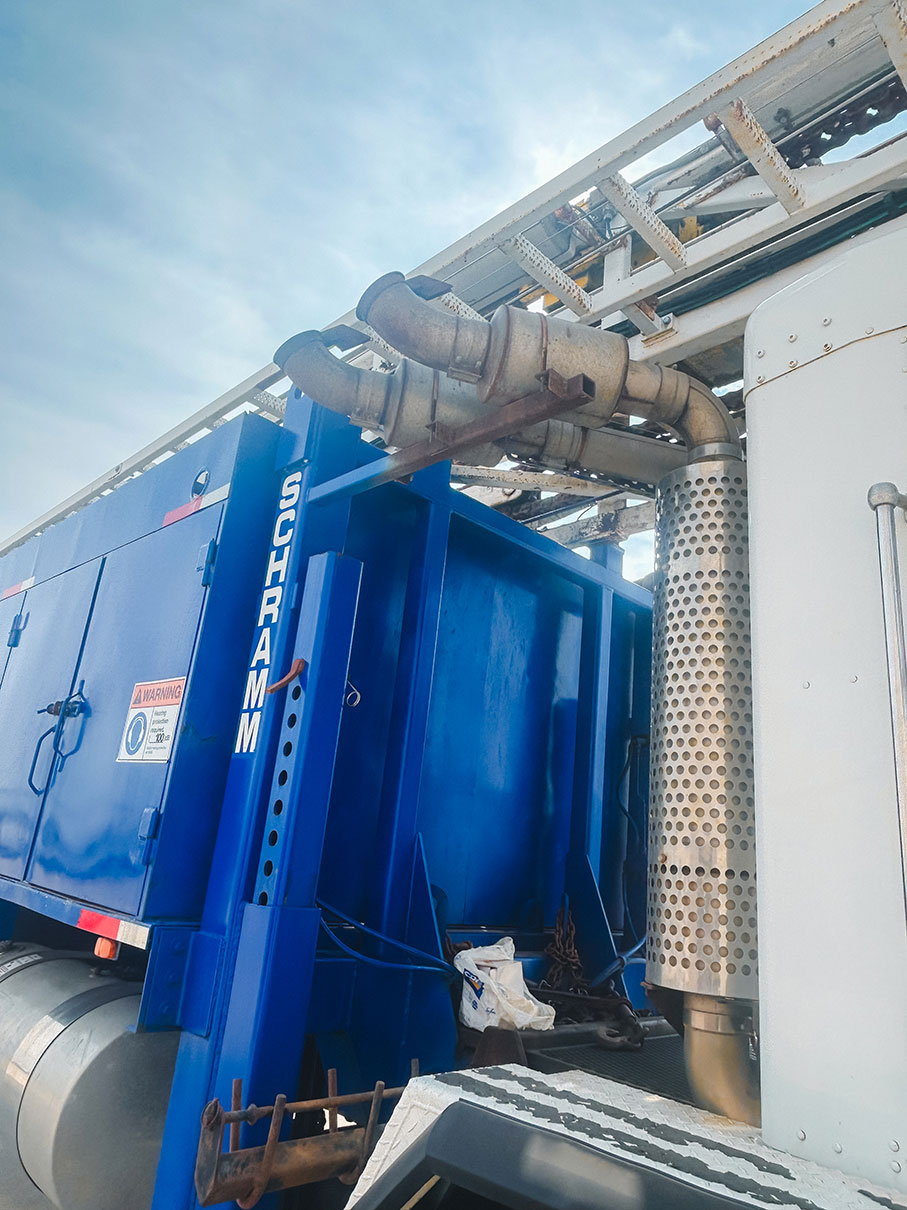

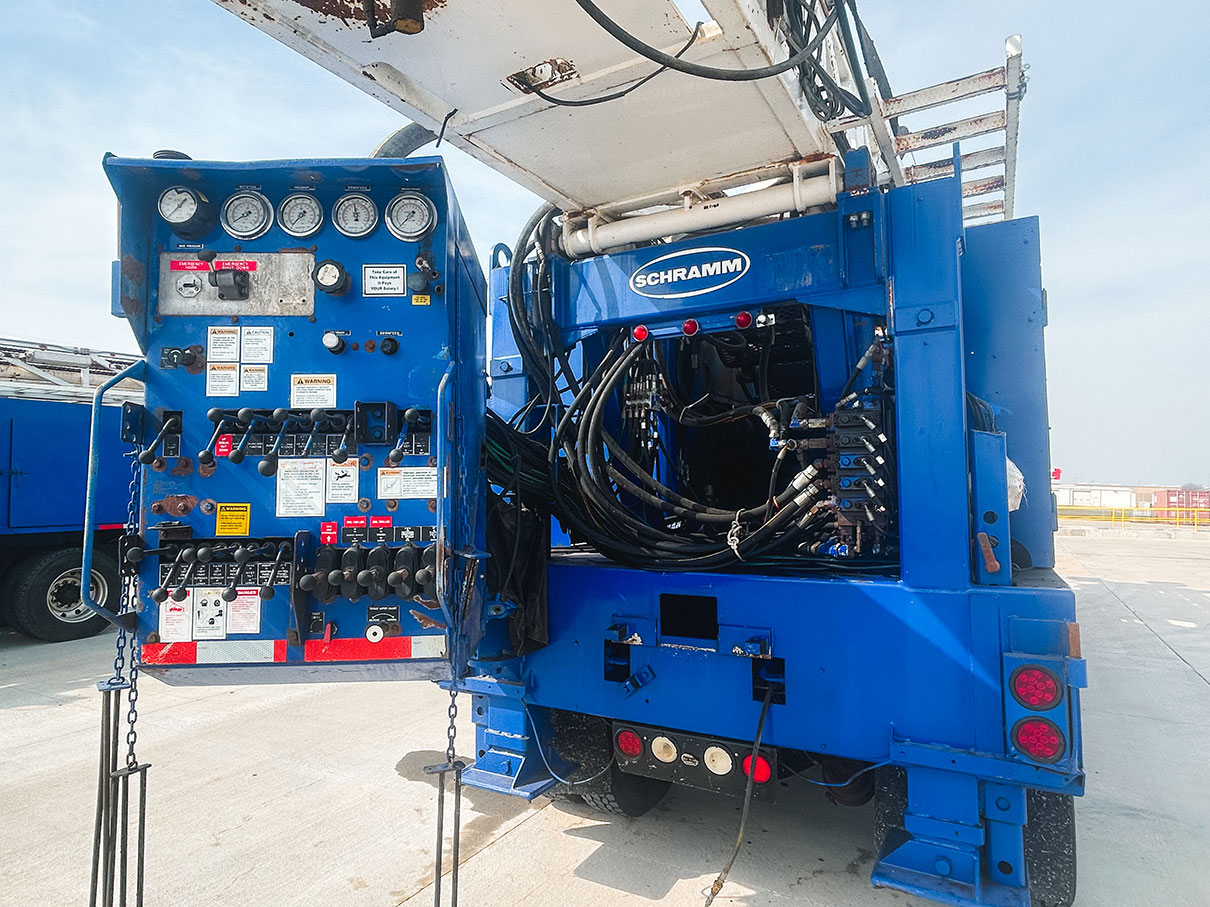

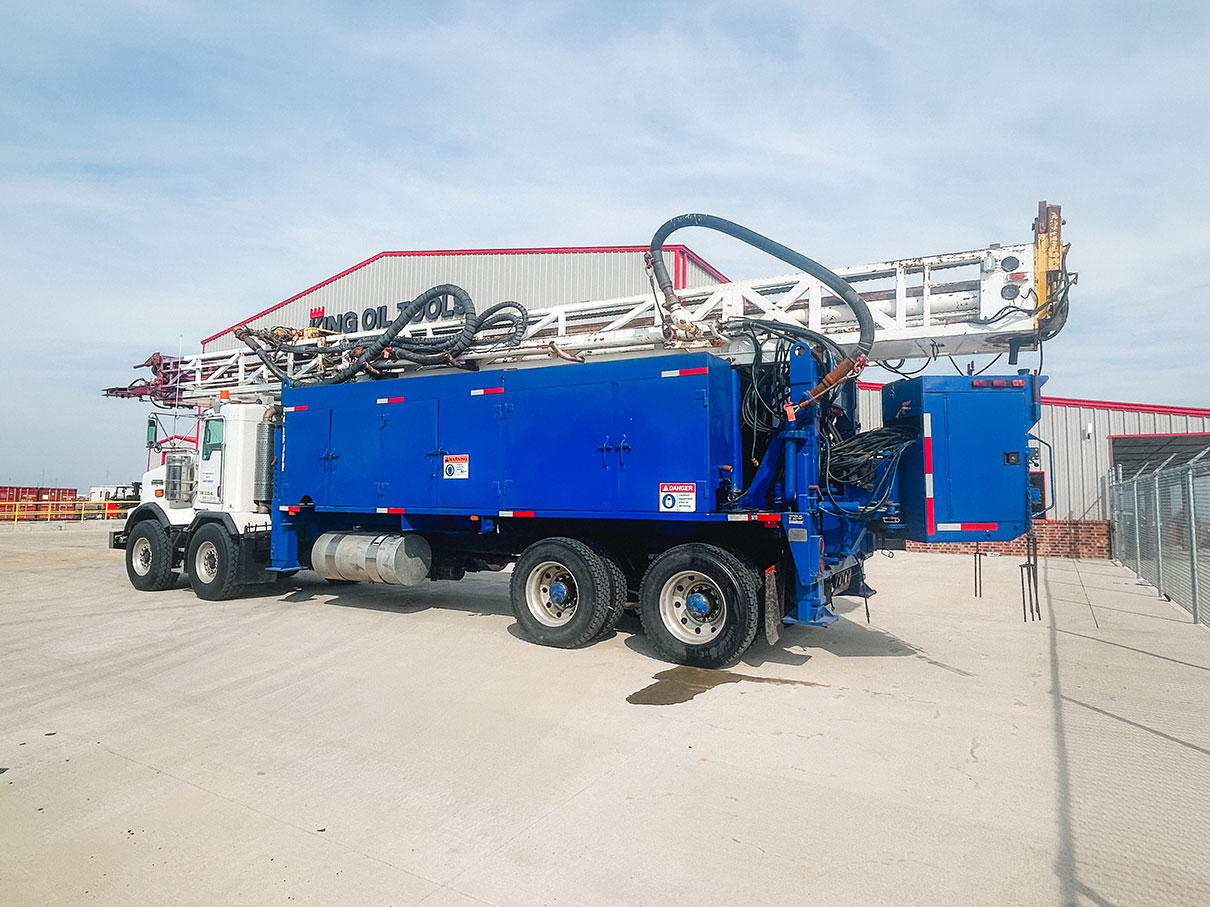

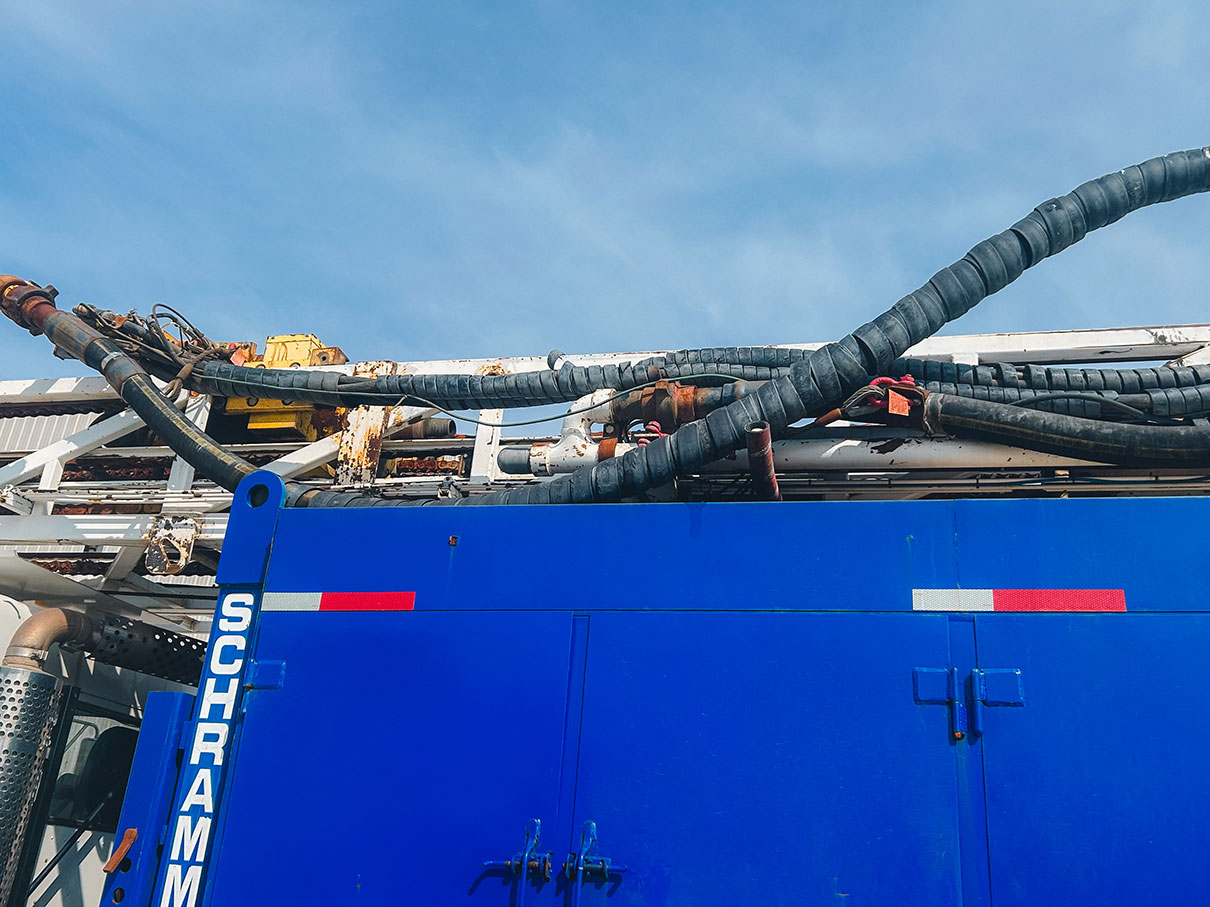

Available now at King Oil Tools, we have three identical 2006 Schramm T-685-WS-P Rotadrills. This specific unit is configured as a Basic Rig 8×4 with a Fabco PTO-170-23 transfer case.
These rigs are built for heavy-duty performance and are set up for 4-5/8 coring rods. Please note that these specific models are streamlined for specialized operations and do not include an air compressor, mud pump, or pipe rack.
Key Specifications & Details:
- Make/Model: Schramm T685WS-P

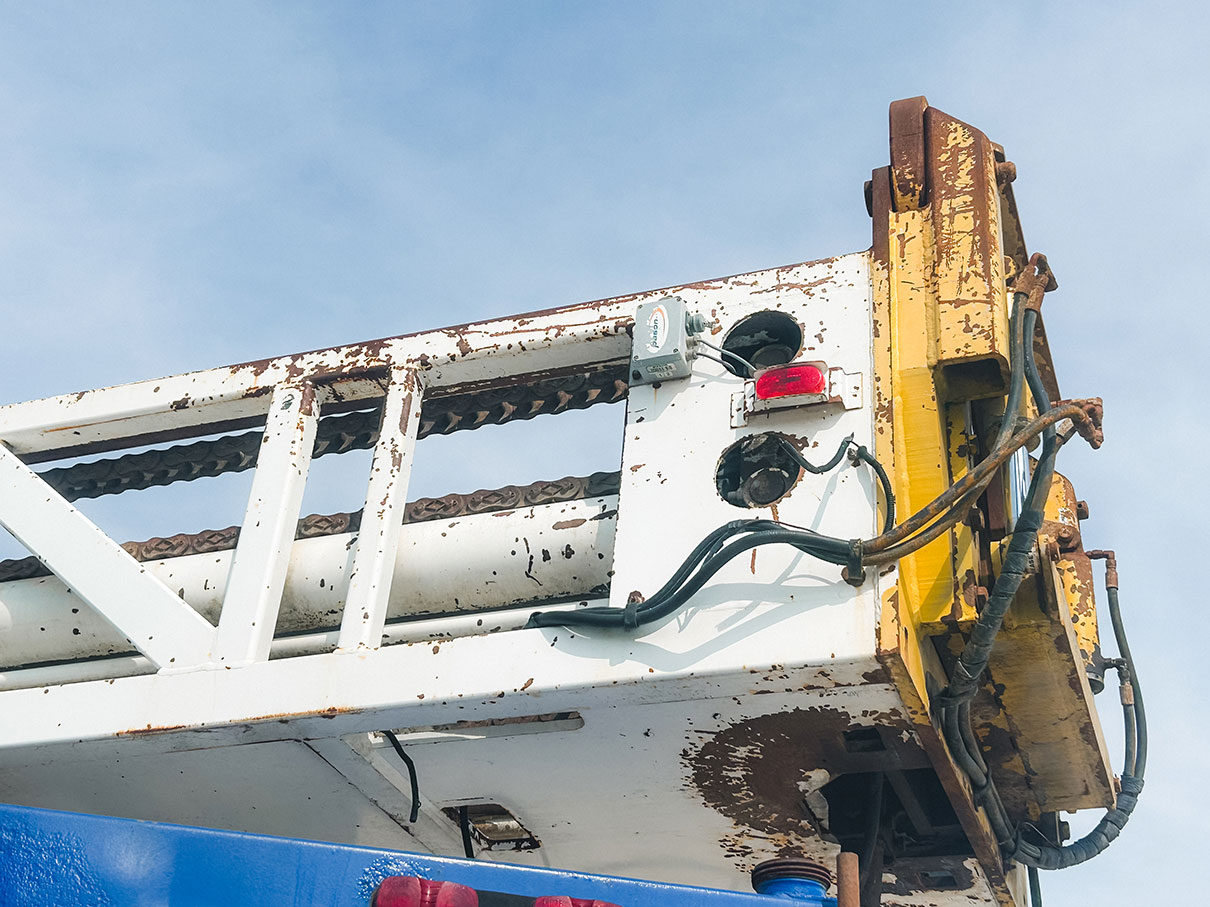

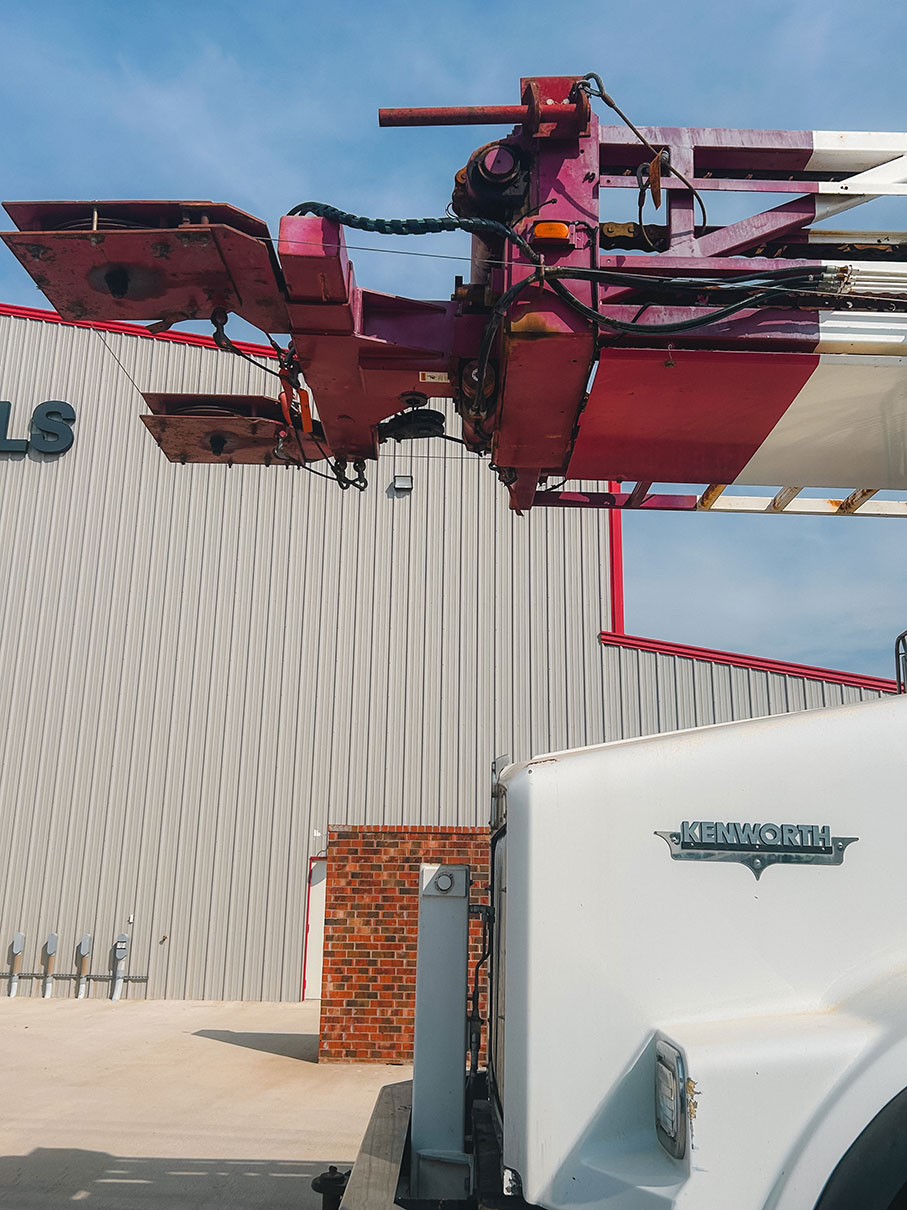

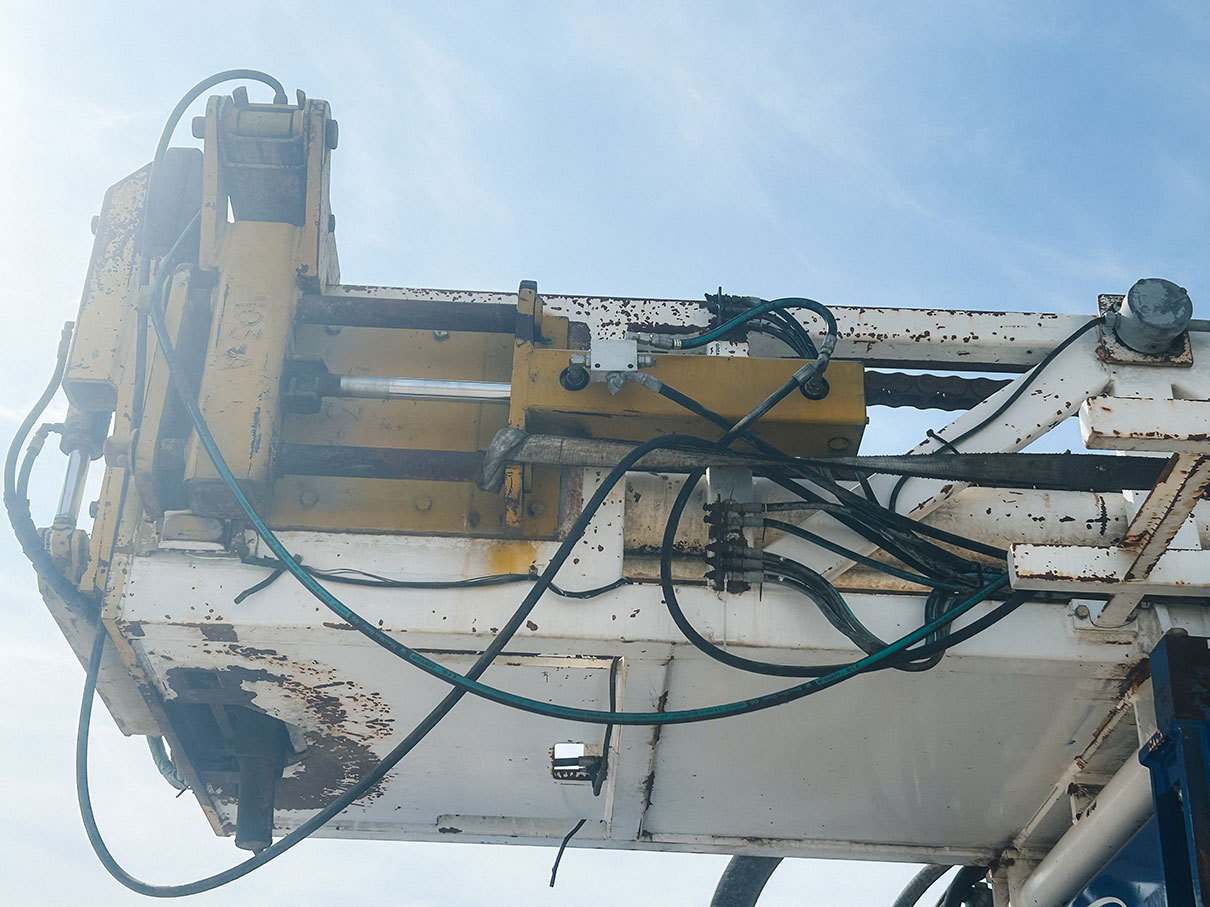

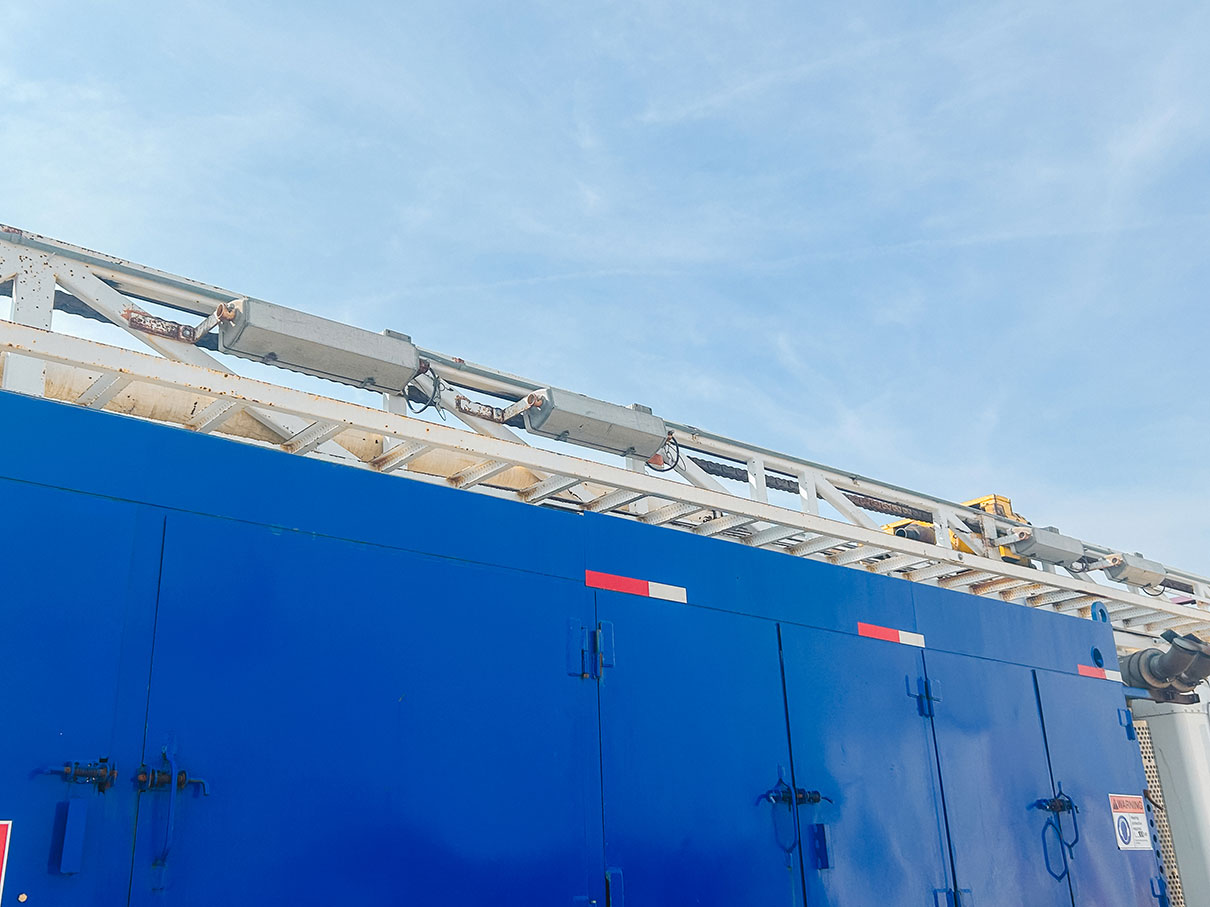

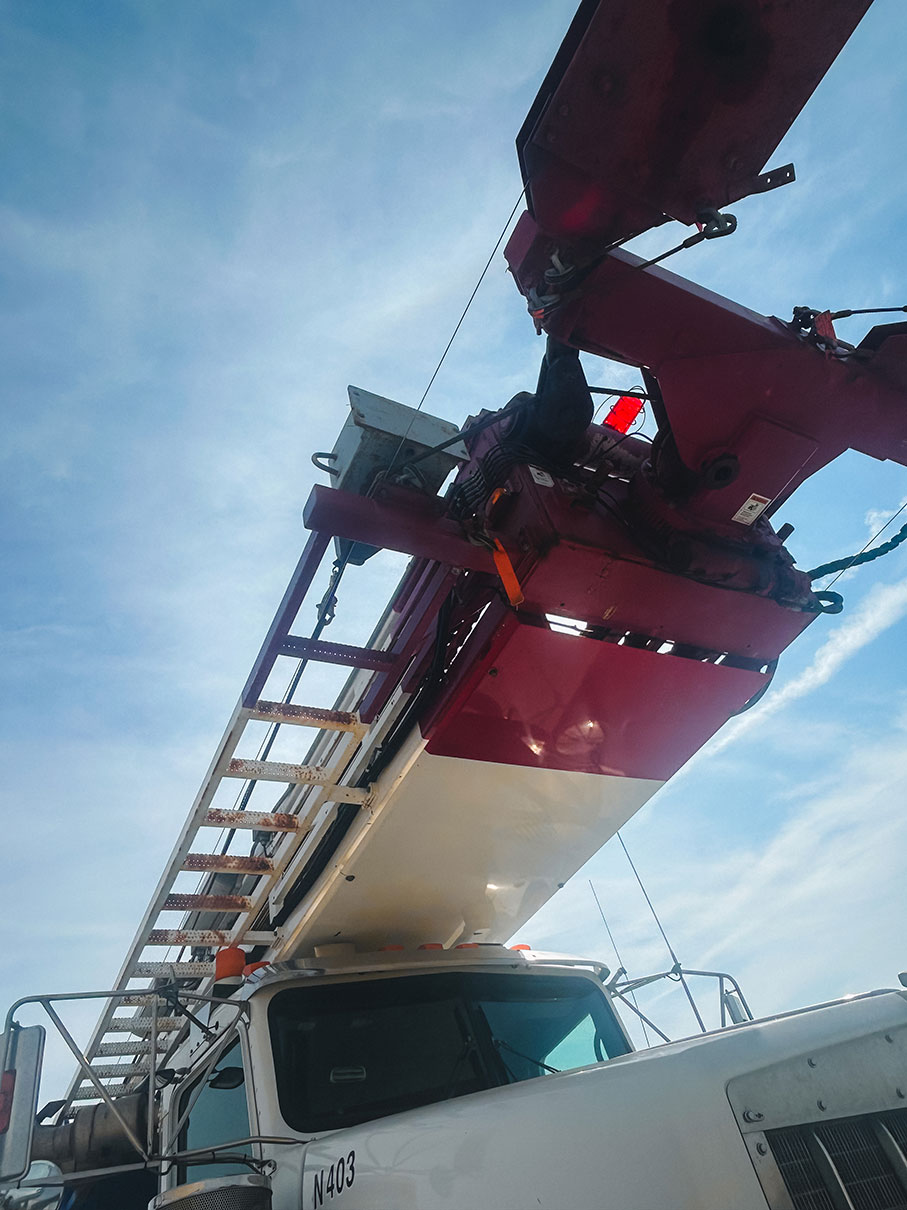

- Mast Setup: The overall length of the mast is 44’8″ with 38′ of top head travel.
- Hoist & Pulldown: Features a hoist capacity of 74,700 lb and a pulldown capacity of 35,000 lb.

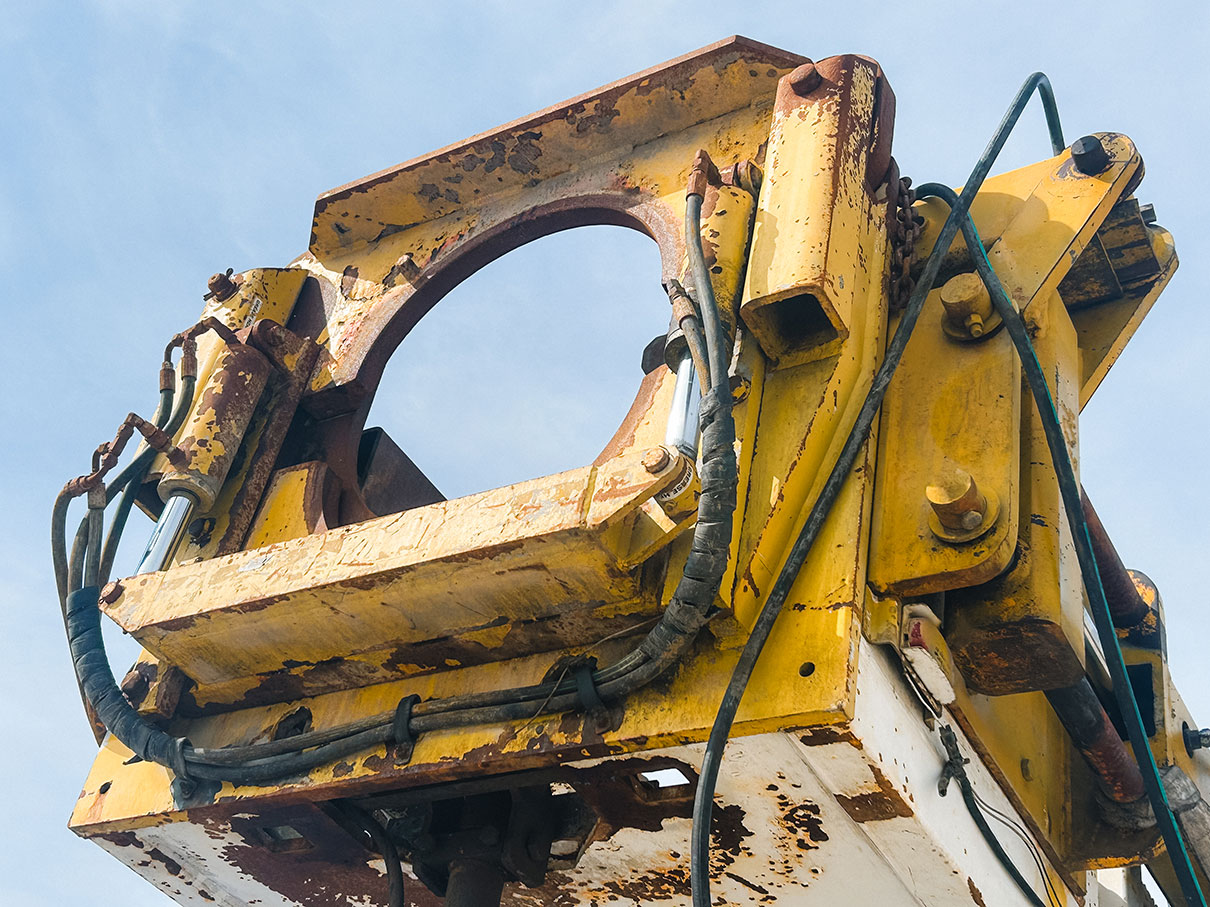

- Top Head: Equipped with a high capacity 2-motor 5″ top head.
- Rotation Power: Generates 269 rotation horsepower with a maximum torque of 75,400 in-lb at 0-205 rpm.
- Winches: Includes a 15,000 lb Braden PD15B winch and a Pullmaster M8 survey line winch.

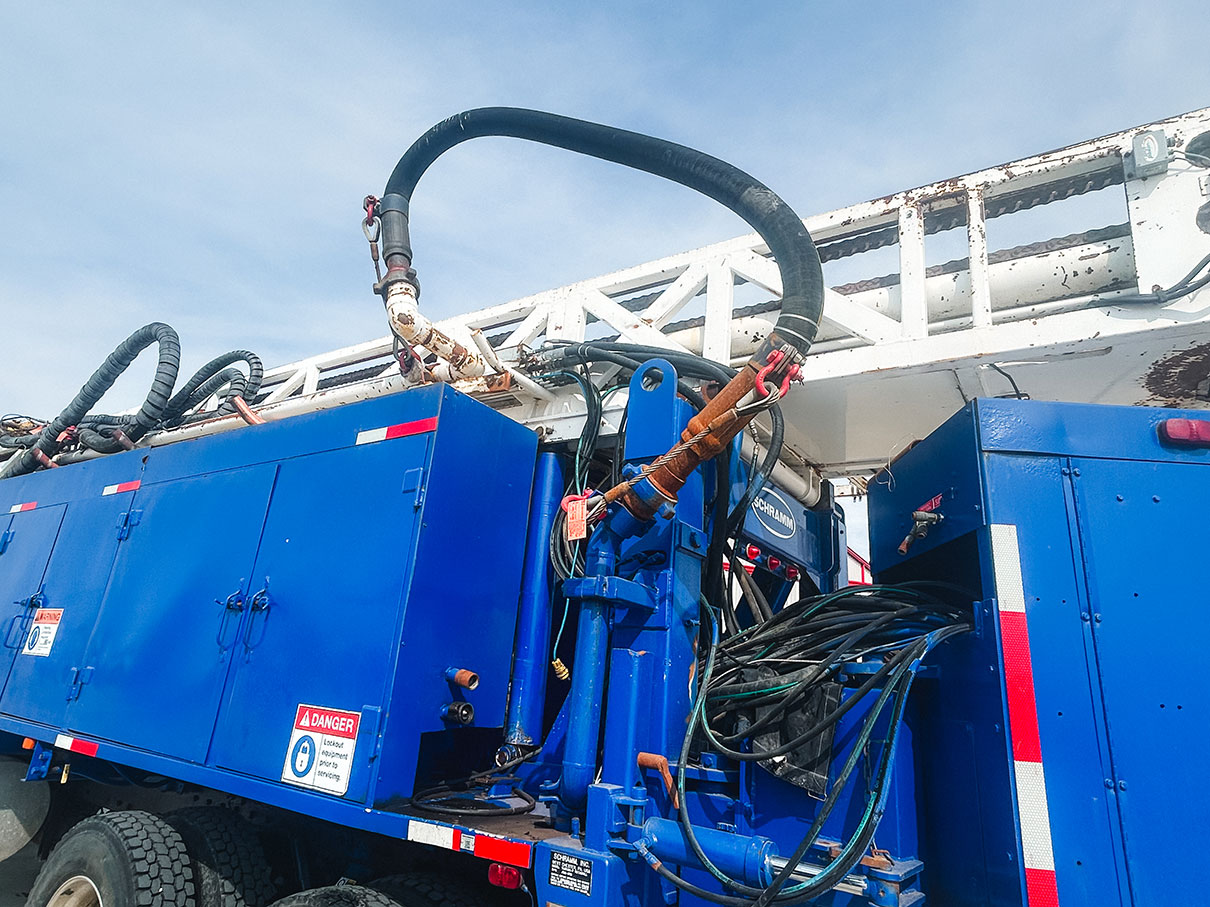

- Hydraulics: The hydraulic system has a 160-gallon capacity and is pre-filled with Petro Canada Hydrex XV All Season cold-weather hydraulic oil.
- Aesthetics: The rig is painted Encore Blue, while the mast is painted Encore Red and White.
Transport Dimensions:
- Overall Length (Transport): 39 ft 6 in.
- Overall Width: 8 ft.
- Overall Height (Transport): 12 ft 1 in.
- Weight (Less drill pipe): 57,000 lb.
Location: King Oil Tools – 5808 Sooner Trend, Enid, OK 73701.
Contact the King Oil Tools team today for pricing, comprehensive condition reports, or to schedule a viewing of these three Schramm T-685-WS-P rigs.
